MT-B-L FL OC Pre-assembled light-duty baseplate

Baseplate MT-B-L FL OC #2399677

Configurator
Technical Data
Documents
Features & Applications
Related Products

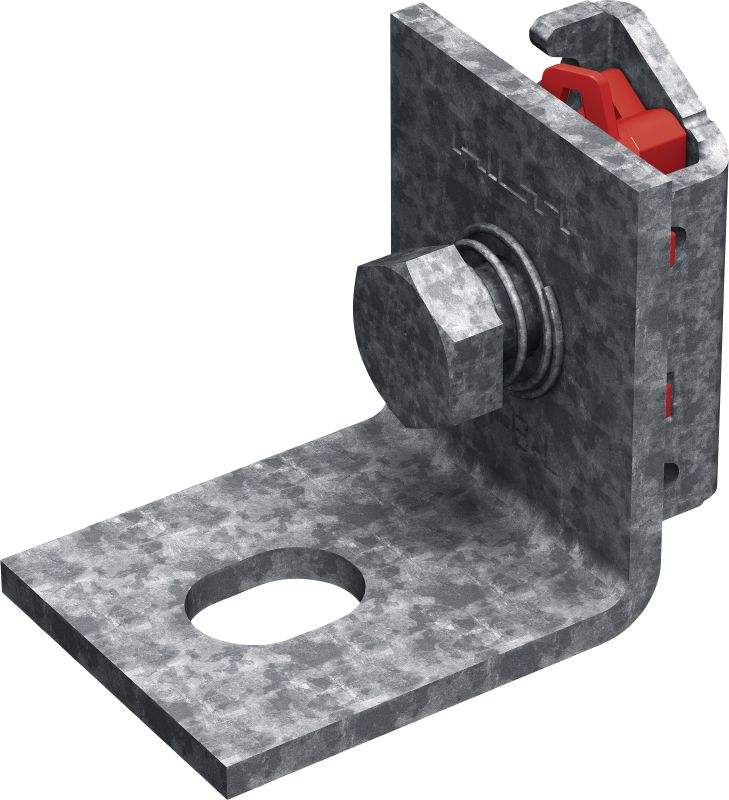

Still life picture of pre-assembled baseplate MT-B-L FL OC with Fast-Lock, outdoor coated

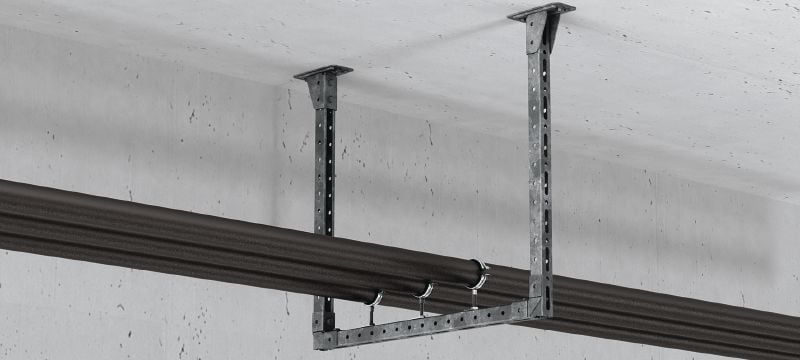

Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Line drawing of the MT-B-L FL

Base connector with pre-assembled Fast-Lock nut and bolt, for anchoring light-duty strut channel structures to concrete or steel, for outdoor use with low pollution

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 18 pc
 Product options
Quantity
Box
Total Pieces
18
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$172.00
$172.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Thread connection - M
M12, 1/2 in
Tightening torque
30 ft-lbs
Weight
0.4 lb

Documents

Approval document
Certificate
Brochure
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with extra-light loads to a base material
  • Suitable for use in moderately corrosive environments
