MT-CC-40/50 FL OC Pre-assembled U-Fitting

Clamp MT-CC-40/50 FL OC #2399679

Configurator
Technical Data
Documents
Features & Applications
Related Products

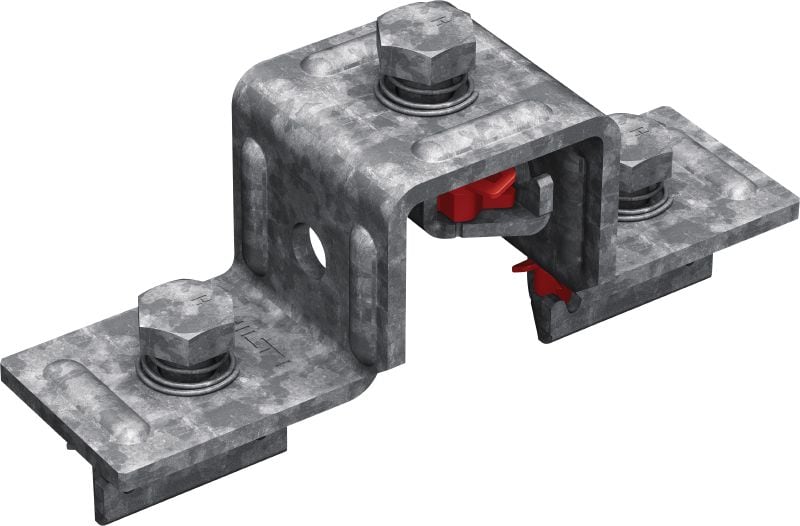

Still life picture of pre-assembled channel clamp MT-CC-40/50 FL OC with Fast-Lock, outdoor coated
Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Line drawing of the MT CC 40 50 FL

Clamp with pre-assembled Fast-Lock nut and bolt for channel-to-channel cross-connections with MT strut channel, for outdoor use with low pollution

  • Material composition: Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 12 pc
 Product options
Quantity
Box
Total Pieces
12
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$303.00
$303.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Tightening torque
30 ft-lbs
Weight
1.1 lb

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Universal and versatile – compatible with multiple strut channel profiles for completing many applications with fewer parts
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Cross-connection of one strut channel to another channel
  • Suitable for use in moderately corrosive environments
