MW-LP L Cable lock kit with wire rope loop ending

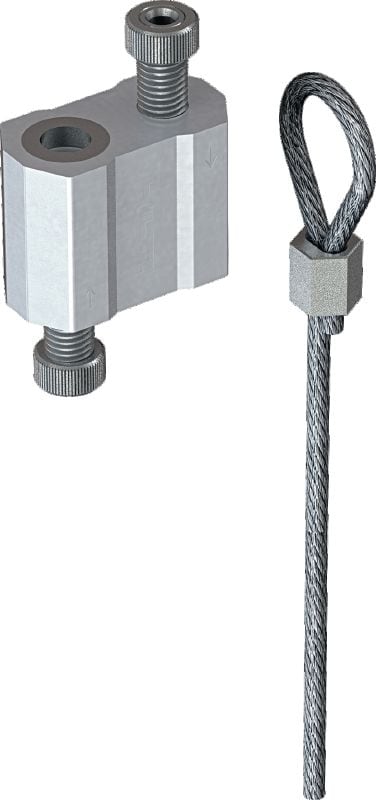

Wire rope with end loop and adjustable lock for suspending fixtures from suitable building features such as steel beams
- Material composition: Wire: steel, Lock: aluminium
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Customers also searched for Duct Hanger, Wire Hanger, Aircraft Cable, Loop Lock or Gripple.
Choose options
Diameter - D
- 1/16 in
- 1/8 in
Length - L
- 80 in
- 120 in
- 240 in
Pack size
- 20 pc
- 30 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $206.00
Technical Data
Material composition
Wire: steel, Lock: aluminium
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Shorter installation time – wire suspension kits give you a much faster alternative to traditional methods with threaded rod
- Versatile – you can use the same wire suspension kit with a wide range of fixtures, base materials and Hilti MT strut and MVA ventilation hardware, simplifying inventory management
- Easier to adjust – self-locking wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler. Pre-mounted safety nuts on the locks can then be tightened to help fix the wire rope securely in place
- Productivity services available – engineering and prefabrication services can be provided on complex projects
- SMACNA compliance – tested and verified according to the HVAC Duct Construction Standards (ANSI/SMACNA 006-2006)
Applications
- Suspending HVAC fixtures, including spiral and rectangular ductwork (using compatible MVA duct hangers), from steel beams
- Lateral bracing
- Suspending electrical fixtures from beams – including cable trays, cable baskets, conduit racks, or lighting
- Suspending architectural elements from concrete or steel – including acoustic, heating and cooling panels, as well as overhead grids
- Suitable for use in dry, indoor environments only
For approval or certificate information, please see individual items.
