Nuron

DSH 700-22 ATC 12" Battery-powered cut-off saw

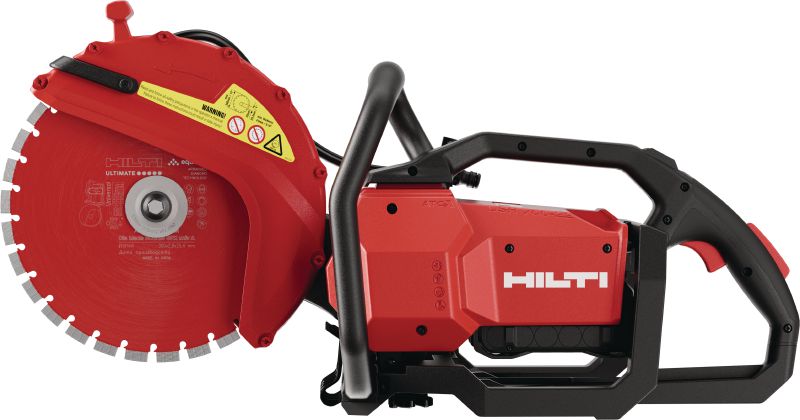

DSH 700-22 with SPX univ A blade.

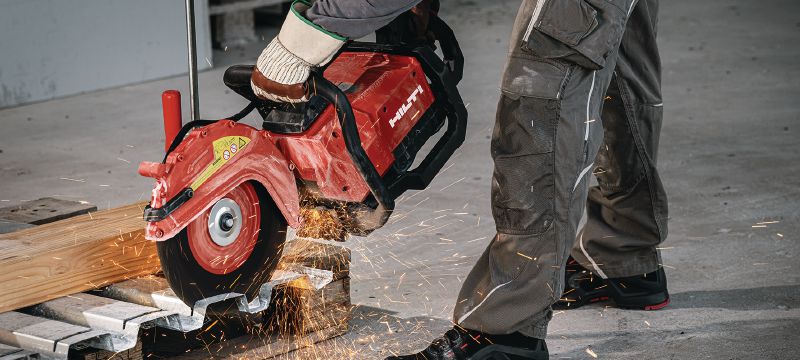

Application image of metal deck cutting with abrasive disc.
Application image of metal pipe cutting with abrasive disc.

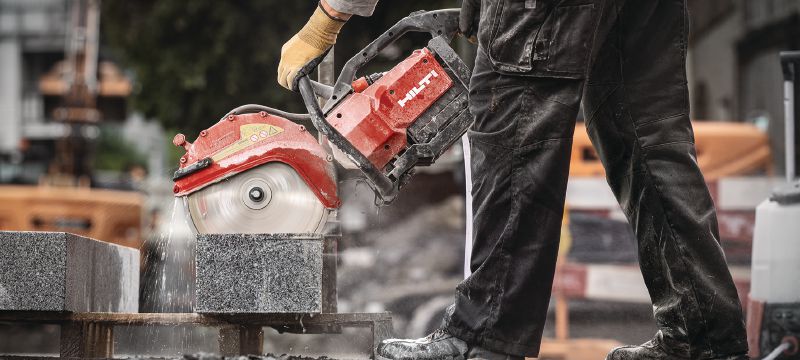

Application image of curbstone cutting with SPX universal A blade.

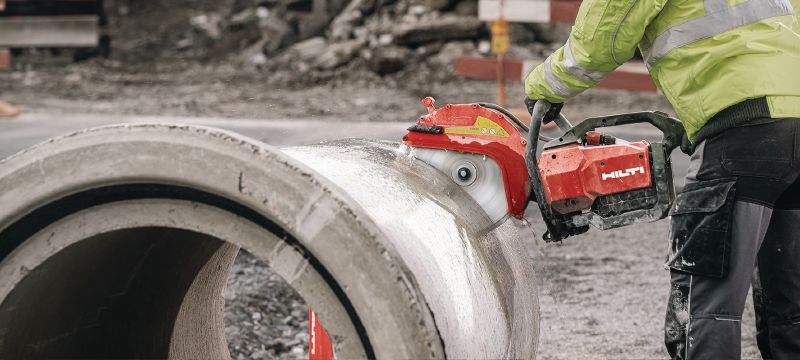

Application image of concrete pipe cutting with SPX universal A blade.
DSH 700-22 with SPX univ A blade.
Application image of metal deck cutting with abrasive disc.
Application image of metal pipe cutting with abrasive disc.
Application image of curbstone cutting with SPX universal A blade.
Application image of concrete pipe cutting with SPX universal A blade.

Versatile rear-handle battery cut-off saw, for cutting up to 4-3/4" with 12" blades in concrete, masonry, and metal (Nuron battery platform)

  • Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Masonry
  • Protection class: IEC Battery operated
  • Work environment: Interior and Exterior

Technical Data

Base materials
All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Masonry
Protection class
IEC Battery operated
Work environment
Interior and Exterior
Arbor Size
Option 1 : 1 in; Option 2: 20 mm
A-weighted emission sound power level
107 dB (A) 1
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Matching power-class – our second generation offers improved power to help match the performance and feel of a 70cc gas cut-off saw, all without the fumes, noise, or high vibration rate
  • Advanced safety features – new 3D Active Torque Control (ATC) stops unexpected saw kickback in under 1 second, and fast-acting blade brake stops the blade in ≤ 4 seconds after releasing the trigger
  • Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimized blades (see technical data below)
  • Push button start – green LED power button indicates whenever the tool is ON and automatically turns the tool OFF after 1 minute
  • Versatile handling – weighing 29.7 lbs (with two B 22-255 batteries and a 300 mm blade), this cut-off saw can be used for both ground-facing and front-facing applications

Applications

  • Construction work – cutting out openings in brick or concrete walls

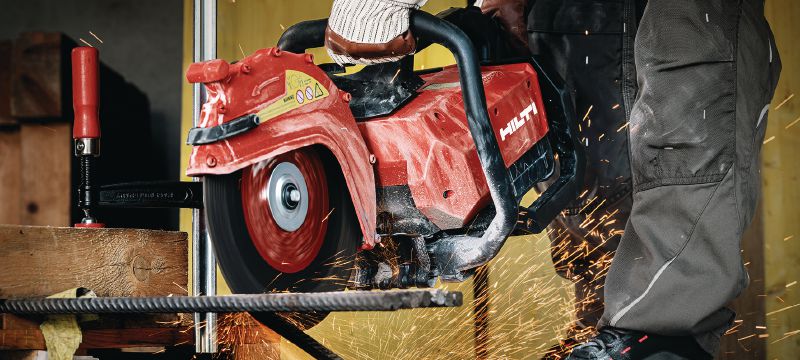

  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Laying paving – cutting curbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Floor construction – cutting expansion joints in fresh concrete

For approval or certificate information, please see individual items.
