DCH 300-X Electric cutter

DCH 300-X + SPX Universal Blade #3625042

2D - still life highlighting blade guard/ depth gauge includung depth gauge connected to water supply
Wet cutting of concrete slabs with a precise cutting depth due to the depth gauge
Wet cutting in reinforced concrete wall

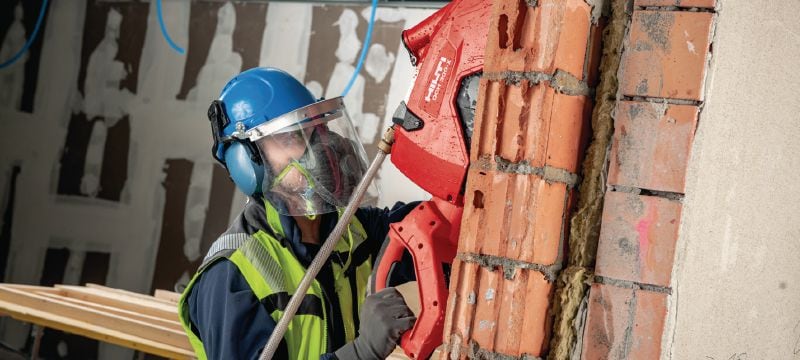

Wet use of the DCH 300-X for an enlargement in masonry

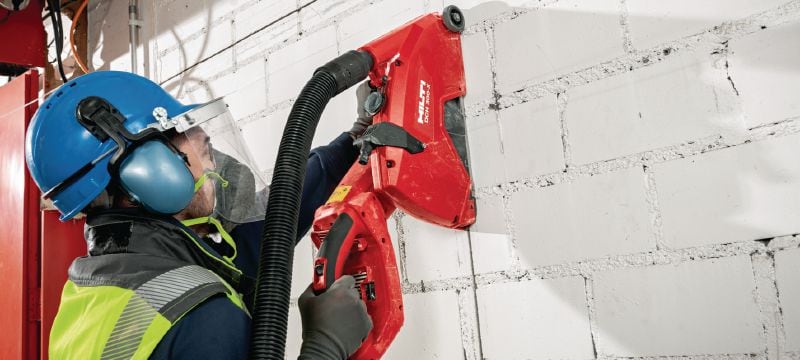

Dry use of the DCH 300-X for an opening in masonry
Cut concrete slabs almost dustless with use of a Hilti vacuum cleaner

Wet and dry electric hand-held diamond cutter – cutting depth up to 120 mm with 305 mm blades

  • Disc diameter: 12 in
  • Cutting depth: 5 in
  • No load RPM: gear 1: 4900 rpm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$2,939.00
$2,939.00
/
1 Each

Technical Data

Disc diameter
12 in
Cutting depth
5 in
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Arbor size
7/8 in
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
27.8 x 9.4 x 9.3 in
Wet or dry operation
Wet and Dry
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DC-D, DG-CW, DC-TP, Russian, English, Spanish, French, Portuguese [ 3.1 MB ]
pdf Operating Instruction DCH 300 / DCH 300-X (01) (ENEN-US), English [ 7.5 MB ]
pdf Operating Instruction DCH 300 / DCH 300-X (01) (FRFR-US), French [ 7.6 MB ]
pdf Operating Instruction DCH 300 / DCH 300-X (01), English, Spanish, French, Portuguese [ 7.8 MB ]

Features & Applications

Features

  • Water kit allows wet cutting, which is 30% faster than dry cutting and virtually dust-free
  • Depth gauge – allows full control of the cutting depth in 10 mm steps from 40-120 mm
  • Ensures a virtually dust-free job site when used with a compatible vacuum cleaner
  • Protection against overheating, overloading and water – prolongs the tool's lifetime and increases the operator's safety when wet cutting

Applications

  • Cutting reinforced concrete, granite curbstones, slabs, brick and masonry blocks
  • Cutting and extending openings for windows, doors and shafts
  • Making preliminary cuts for controlled demolition
