TE 3000-22 TE-H Heavy-duty cordless jackhammer

Cordless breaker TE 3000-22 #2441223

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

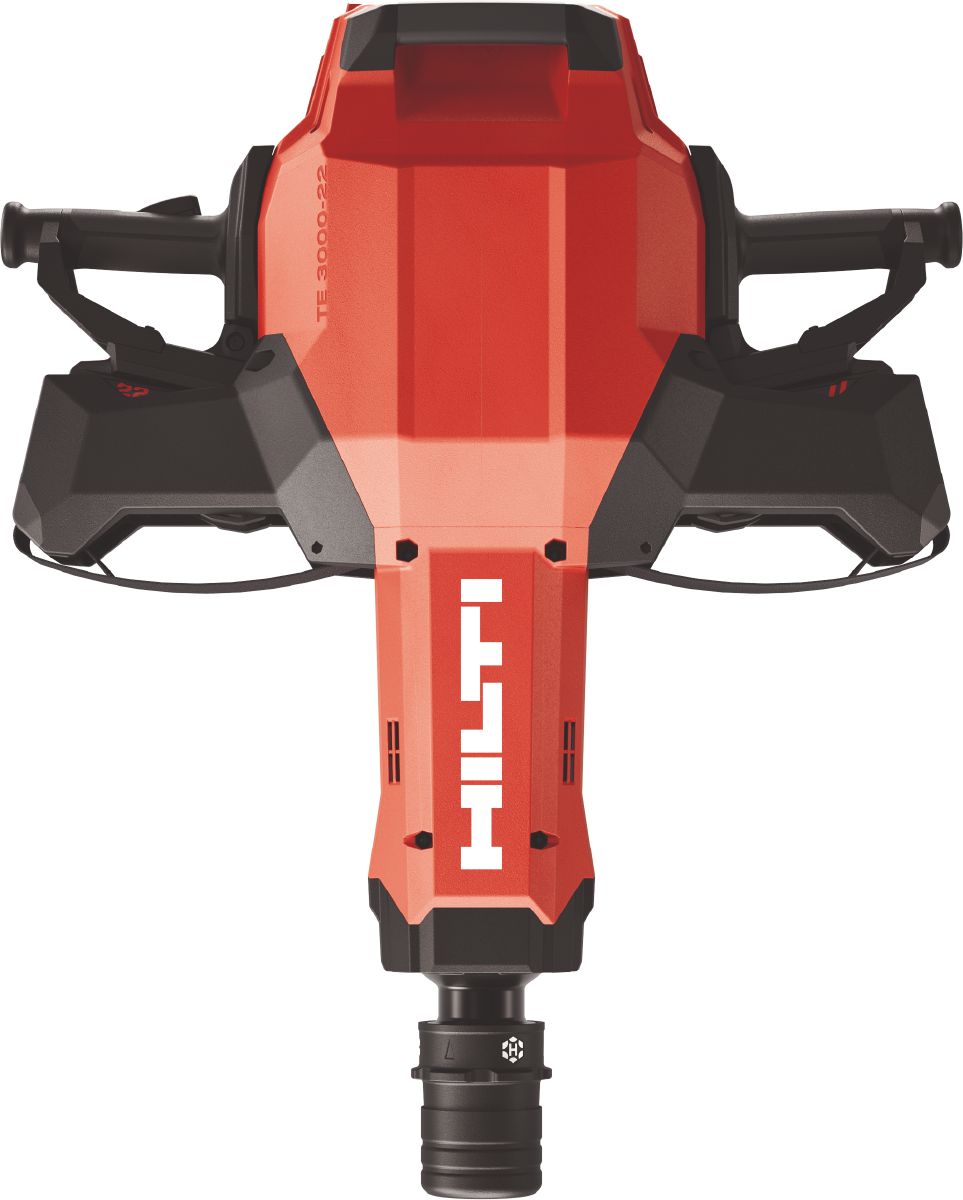

Still life image of cordless breaker TE 3000-22.

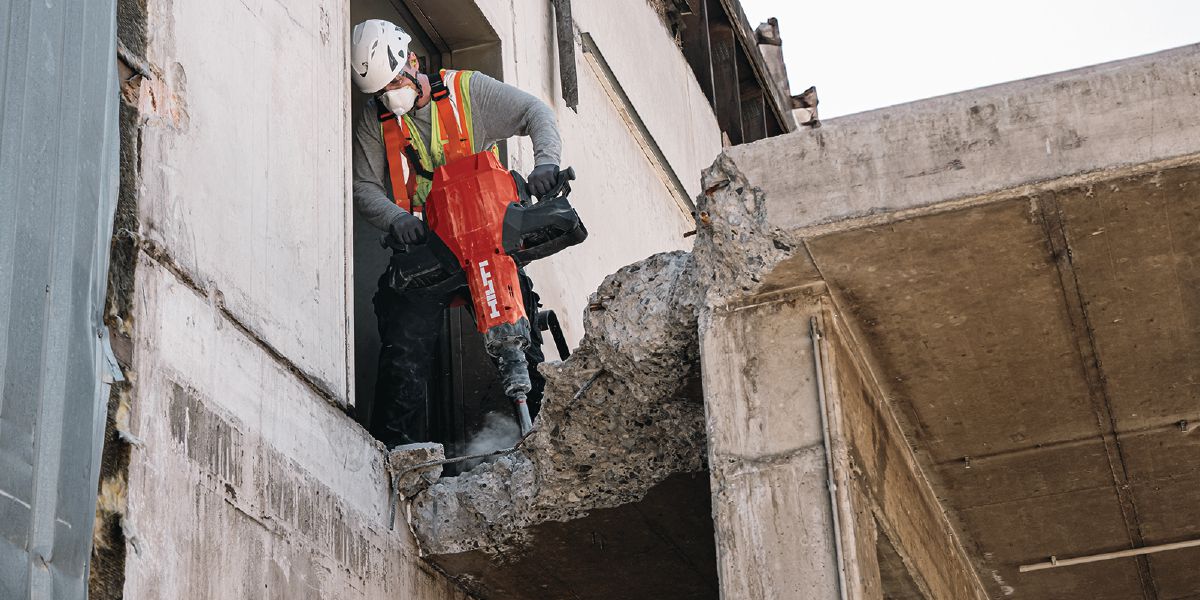

Cropped application image of cordless breaker TE 3000-22 floor breaking with flat-point chisel.

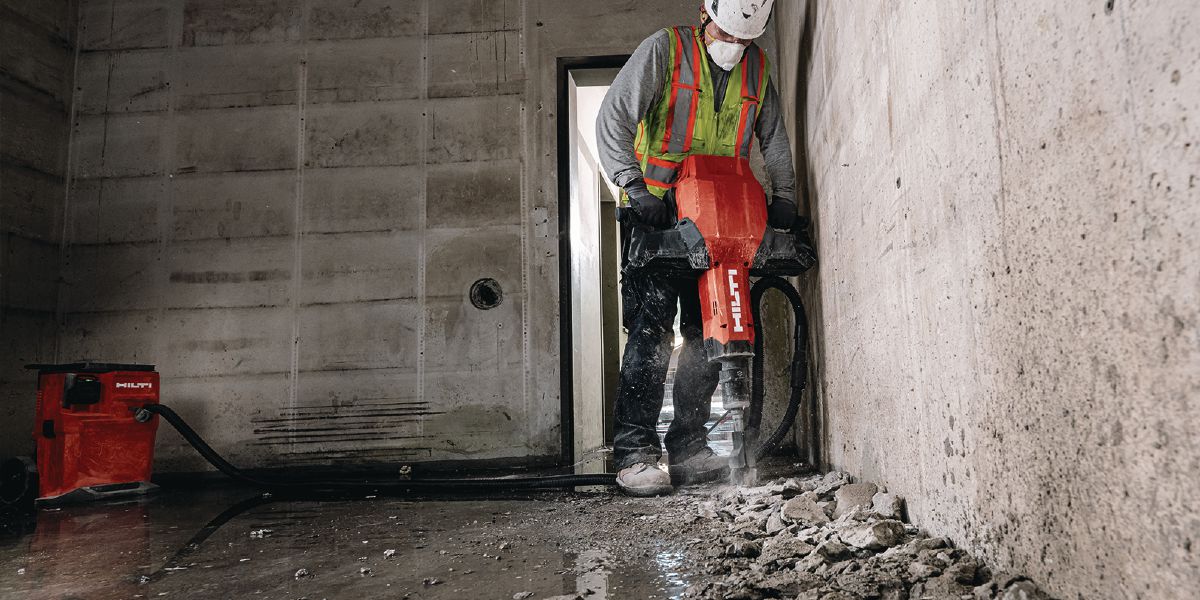

Cropped application image of cordless breaker TE 3000-22 water proofing with flat chisel.

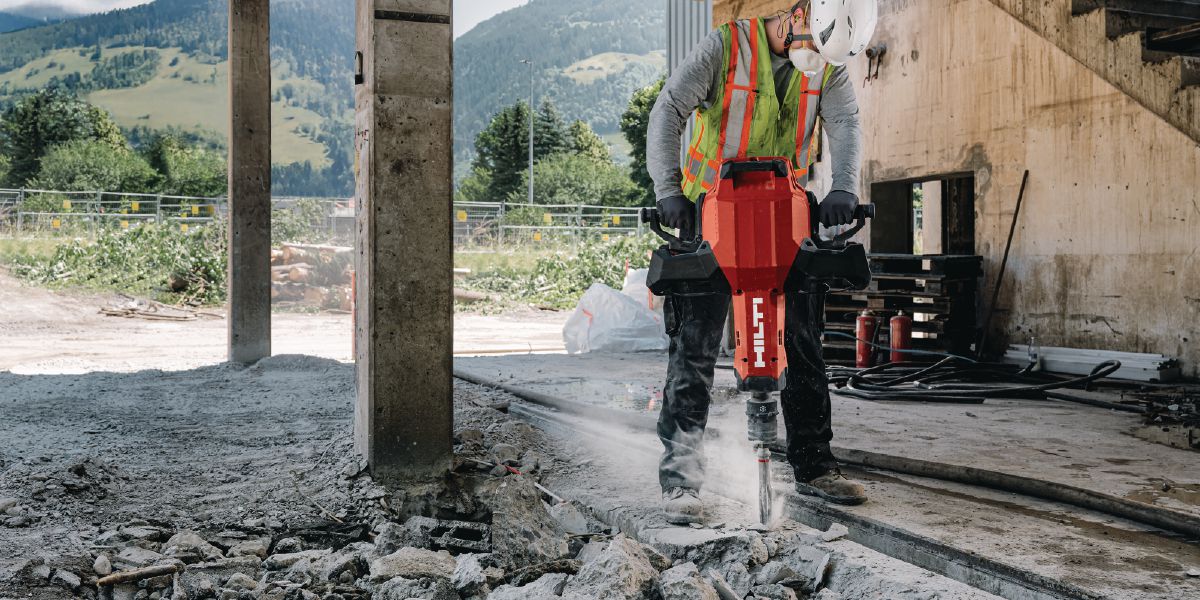

Cropped application image of cordless breaker TE 3000-22 channeling with flat point chisel.

Extra-powerful cordless breaker for heavy-duty concrete demolition, asphalt cutting, earthwork and driving ground rods (Nuron battery platform)

  • Working direction: Floor
  • Tool chuck type: TE-H (Hilti HEX 28)
  • Single impact energy: 62.7 ft-lbf

Customers also searched for Jackhammer, Demolition Hammer, Concrete Breaker, Breaker Hammer or Battery Jackhammer.

Customize your kit

Tool Body
Tool body with cardboard box Includes: 1x Hilti Grease 50ml
How many kits do you want to order?
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$3,999.00

Technical Data

Working direction
Floor
Tool chuck type
TE-H (Hilti HEX 28)
Single impact energy
62.7 ft-lbf
Full hammering frequency
840 impacts/minute
Max. chiseling performance
N/A in³/min
Dimensions (LxWxH)
32 x 26 x 10 in
A-weighted emission sound pressure level
100 dB (A) 1
Battery type
Hilti B22 / NURON
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]
pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]

Features & Applications

Features

  • Matching power-class – delivers the same demolition power as the corded TE 3000 jackhammer and heavier 45 kg (90 lbs) air-powered breakers
  • Faster setups – eliminates the hassle of extension cords and often unreliable mains power supply, helping you start the job faster
  • More working time per charge – demolish up to 1.8 tons of concrete per charge on one pair of Nuron B 22-290 batteries, or add an optional large battery kit to take runtime even further
  • Smoother handling – Active Vibration Reduction (AVR) and two fully decoupled handles help increase comfort, while soft-start reduces jumpiness on tool start-up
  • Optimized chisel system – our new Ultimate TE-H(X) chisels and quick-change chuck system help you extract even more performance from your Hilti jackhammers

Applications

  • Small area corrections and spot demolition of reinforced concrete slabs and foundations
  • Applications with high mobility requirements such as asphalt breaking/cutting in civil road construction (e.g. for sewer lines and road repairs)
  • Concrete removal for structural restoration, slab extensions, rebar reinforcement and repair in areas with limited electricity access
  • Digging, trenching and tamping in rocky, hard clay and other dense earthwork
  • Setting ground rods in hard soils for a safer, ladder-free installation of earthing rods (optional TE-H PD Power Driver required)

Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Individual labels and online visibility provide tool fleet transparency.
More information about Fleet Management

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
More information about LifeTime Services
