DD 120 Core drill

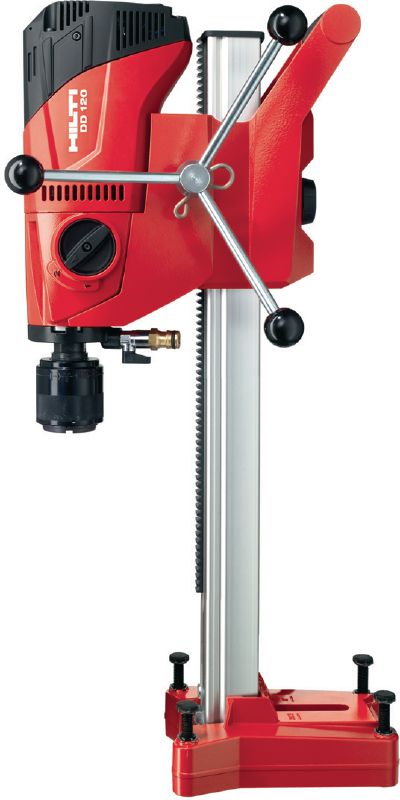

DD 120 Complete Core Rig with Kit Box #3604583

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

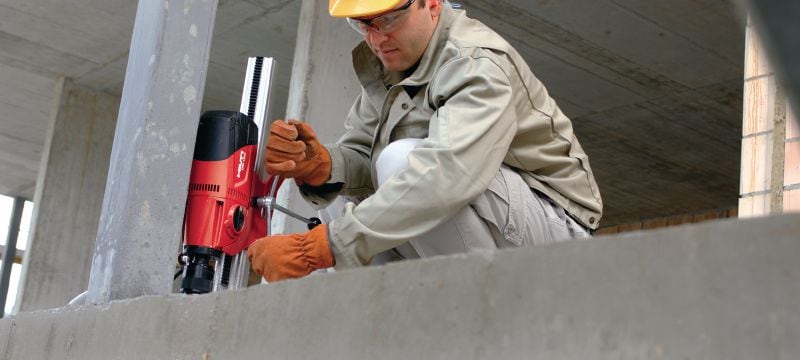

DD 120, diamond drilling, diamond coring
43626.tif

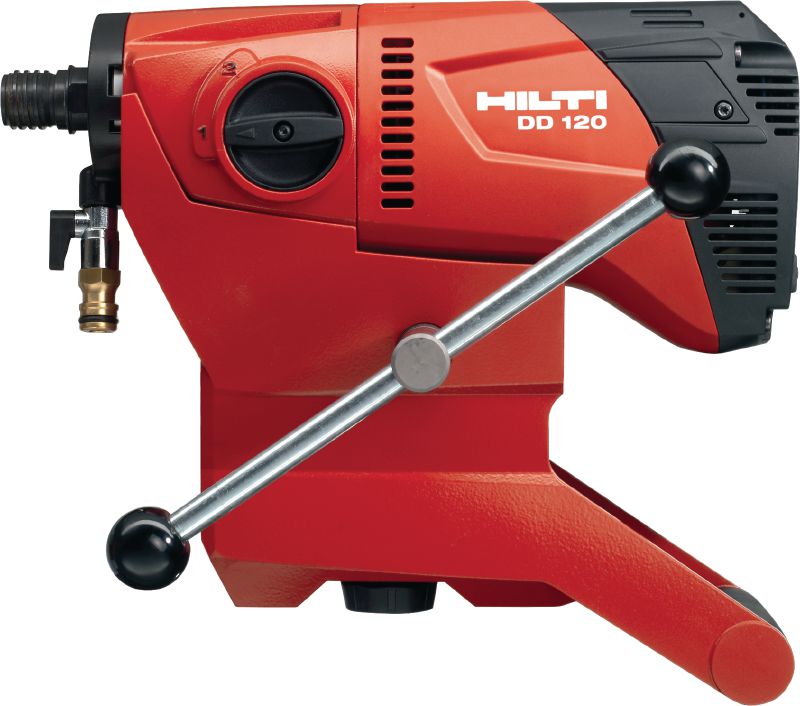

DD 120, Diamond coring tool, r3677
9451.tif
9452.tif
9453.tif
9454.tif

Extremely compact, light and mobile diamond coring machine for rig-based concrete coring from 16-162 mm (5/8 - 6-3/8") in diameter

  • Diameter range: 5/8 - 6-3/8 in
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$5,689.00
$5,689.00 / 1 Each

Technical Data

Diameter range
5/8 - 6-3/8 in
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according EPTA-Procedure 01/2003 without battery
23.1 lb
Weight of complete system
23 lb
Dimensions (LxWxH)
12.9 x 5.8 x 13 in
A-weighted emission sound pressure level
89 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - Corebit A
PS/PL
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Approval document local
Documentation
CSA US (dummy for CSA logo)

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively-designed features and controls
  • Compact and lightweight concrete core drill – for much easier handling
  • Two-speed gearing for optimum speed and torque
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximize core bit life
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

  • Installing pipes for sanitary, heating and air conditioning
  • Installing water supply and waste water pipes
  • Making openings for cable trays
  • Setting large-diameter anchors and reinforcing bars
  • Installing railings and barriers

Services

Hilti Tool Service

  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
