DSW 3018-E Wire saw

Wire saw DSW 3018-E 3x480V PR #2094616

Configurator
Technical Data
Documents
Features & Applications
Related Products

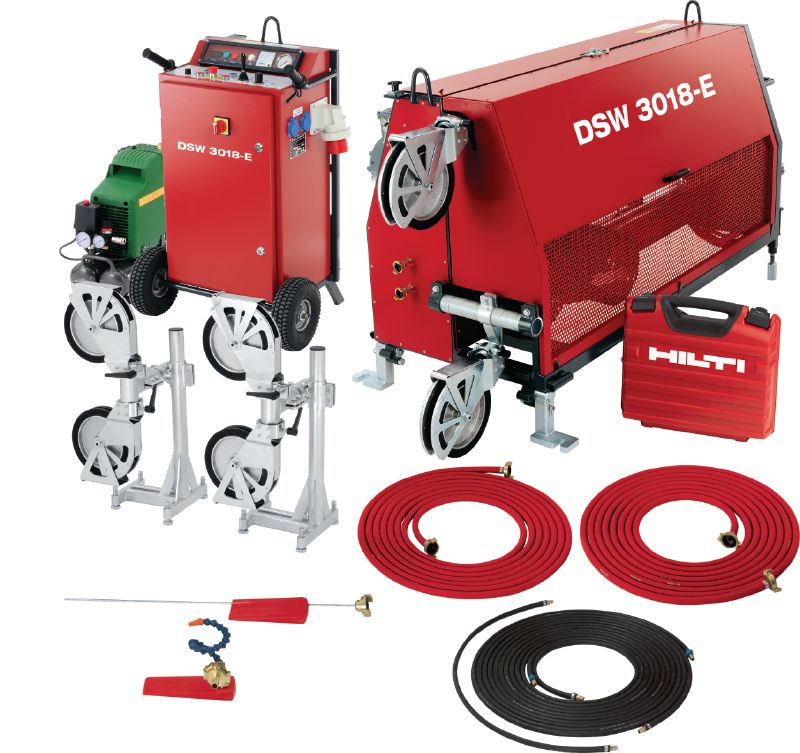

DSW 3018-E 3 x 400V, Wire saw

High power (30 kW) electric wire saw for outstanding heavy-duty cutting performance

  • Motor power: 30 kW
  • Power source: Electric
  • Min. generator power: 80 kVA

Customers also searched for saw for cutting wall, concrete wall saw, electric wall saw, tool for wall sawing or wall saw machine.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$181,759.00
$181,759.00 / 1 Each

Technical Data

Motor power
30 kW
Power source
Electric
Min. generator power
80 kVA
Weight
1212.54 lb
A-weighted emission sound pressure level
86.1 dB (A) 1
IP protection class
IP 65 (EN 60529), IP 54 (EN 60529)
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Spray 66/300 ML (EN) [ 157.4 KB ]
pdf Material safety datasheet Spray 66/300 ML (FR) [ 202.2 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]
pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]

Features & Applications

Features

  • High sawing performance thanks to two powerful motors, each with 15 kW power output
  • High starting torque reduces effort required to "grind-in" the wire
  • Wire tension damping system reduces stress on the wire
  • Steplessly variable cutting speed with visual indicator
  • Easily adjustable guide pulley system for fast set-up

Applications

  • Controlled demolition or dismantling of structures
  • Applications that must be completed within a very short time frame, demanding highest sawing performance
  • Cutting heavily-reinforced concrete, masonry, stone or steel
  • Underwater applications (where the sawing wire runs partly under water)
  • Dry wire sawing applications (e.g. decommissioning of power plants)
