Nuron

TE 4-22 Cordless rotary hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

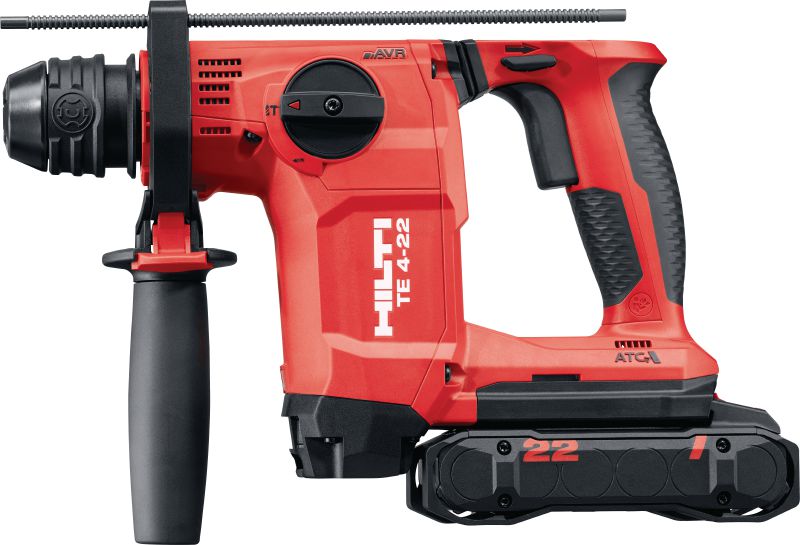

Still life image of TE 4-22 (G03) with B22-85

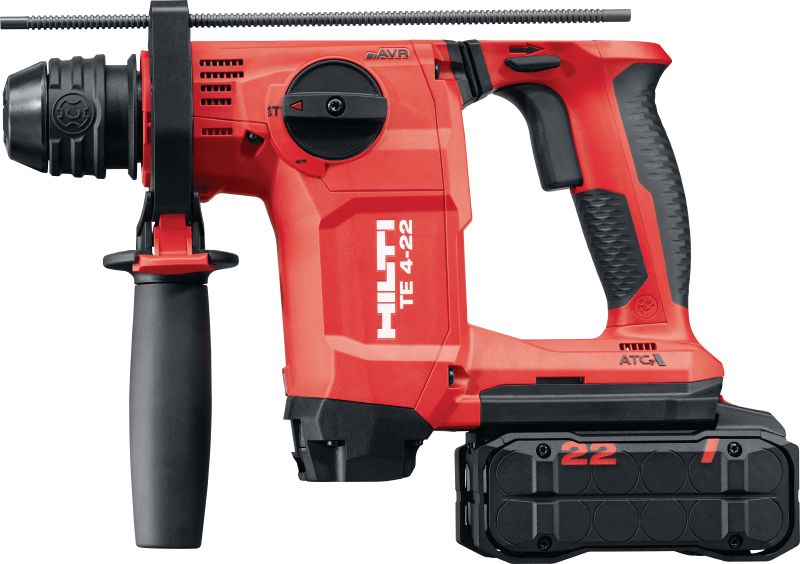

Still life image of TE 4-22 (G03) with B22-110
Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85
Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85

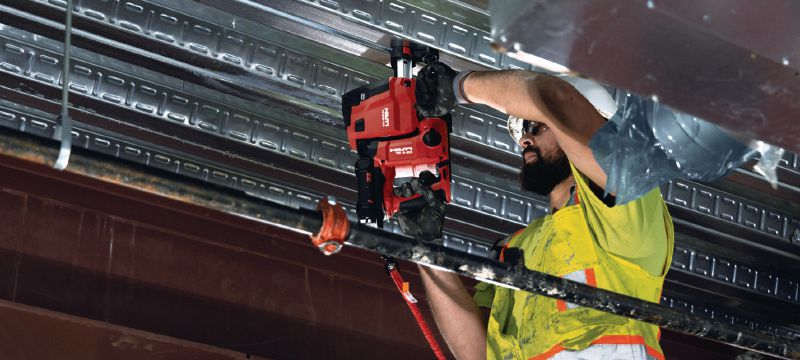

Overhead serial drilling with optimized, safe and high performing rotary hammer TE 4-22 and TE DRS-4/6
Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85

Compact SDS Plus cordless rotary hammer with our best performance-to-weight ratio for overhead drilling (Nuron battery platform)

  • Weight according EPTA-Procedure 01/2003 without battery: 5.4 lb
  • Optimum Hammer drilling range: 5/32 - 9/16 in
  • Single impact energy: 1.7 ft-lbf

Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or Nuron battery platform.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
5.4 lb
Optimum Hammer drilling range
5/32 - 9/16 in
Single impact energy
1.7 ft-lbf
Hammer drilling diameter range
5/32 - 1-3/32 in
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Integrated Dust Removal System (DRS), Reverse mode, Working light LED
A-weighted emission sound power level
98 dB (A) 1
A-weighted emission sound pressure level
90 dB (A) 2
Dust removal system available
TE DRS-4/6, TE DRS-C, TE DRS-D
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
Battery Recycling Information
pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]
pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]
pdf Material safety datasheet LI-ION-BATTERIES <100Wh (FR) [ 314.7 KB ]
pdf Material safety datasheet LI-ION-BATTERIES <100Wh (EN) [ 246.2 KB ]

Features & Applications

Features

  • Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
  • Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
  • Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings
  • Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
  • Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
  • OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
