Nuron

TE 60-22 Cordless rotary hammer

Cordless rotary hammer TE 60-22 case #2370439

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

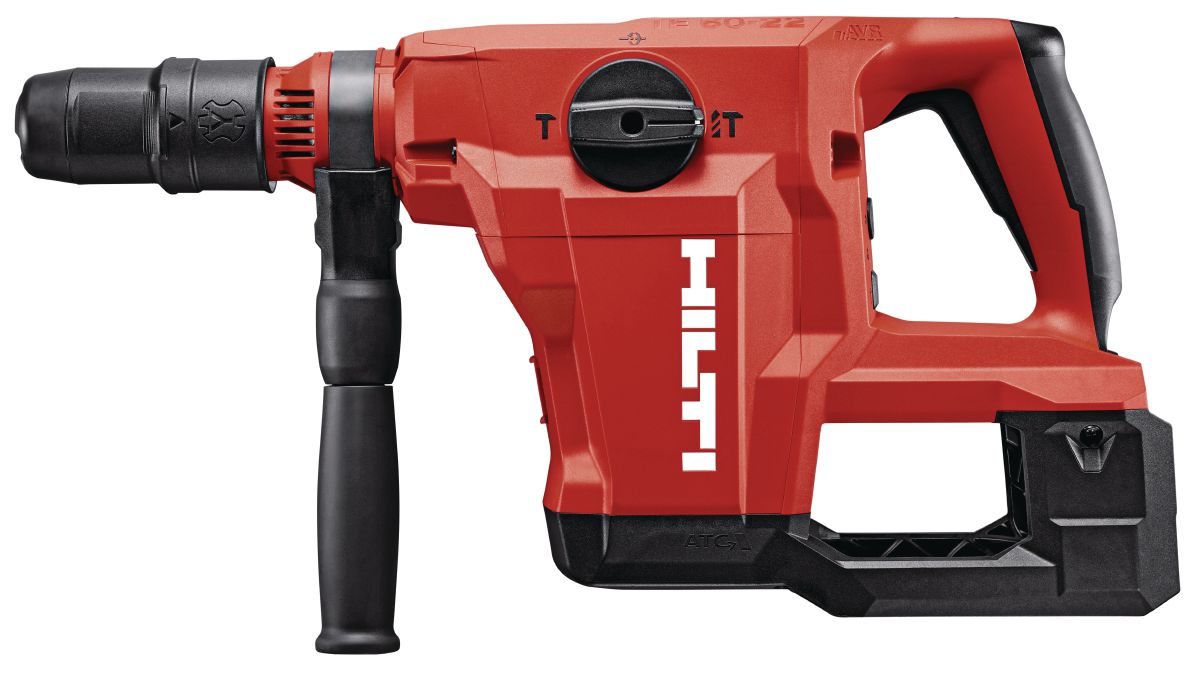

Still life image of TE 60-22(05) tool without battery
Cropped application picture of the fifth generation cordless rotary hammer TE 60-22. Rebar drilling application with the TE-YD.
Cropped application picture of the fifth generation cordless rotary hammer TE 60-22. Chiselling application with the TE-YPX.
Cropped application picture of the fifth generation cordless rotary hammer TE 60-22. Chiselling application with the TE-YPX and DRS-Y.
Cropped application picture of the fifth generation cordless rotary hammer TE 60-22. Socket cutting application with the TE-Y-BK and DRS-Y.

Powerful and cordless SDS Max (TE-Y) rotary hammer with high power-to-weight ratio for heavy-duty drilling and chiseling in concrete and masonry (Nuron battery)

  • Weight according EPTA-Procedure 01/2003 without battery: 14.1 lb
  • Optimum Hammer drilling range: 23/32 - 1-9/16 in
  • Single impact energy: 6.5 ft-lbf

Customers also searched for Cordless SDS MAX Rotary Hammer, SDS MAX Drill, SDS MAX Hammer Drill, Concrete Combihammer or Concrete Hammer Drill.

Customize your kit

Tool Body
Tool body with case Includes: 1x Hilti Grease 50ml, 1x Tool case TE 60-22 assy
How many kits do you want to order?
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$1,399.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
14.1 lb
Optimum Hammer drilling range
23/32 - 1-9/16 in
Single impact energy
6.5 ft-lbf
Hammer drilling RPM
303 rpm
Full hammering frequency
3480 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiseling, Power reduction
Triaxial vibration for chiseling into concrete
9.1 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
98 dB (A) 2
A-weighted emission sound power level
106 dB (A) 3
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]
pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]

Features & Applications

Features

  • Outsized power-to-weight ratio – our next-generation TE 60-22 offers 25% faster drilling speeds and the power you’d expect from a much heavier rotary hammer
  • Maximized work per charge – brushless motor and more efficient 22V Nuron batteries help you get more battery run time
  • Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Dust Removal System (DRS) compatibility for virtually dust-free drilling
  • Longer trigger time – Active Vibration Reduction (AVR) helps shield from vibration so you can work with fewer interruptions
  • On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting lithium-ion batteries, energy-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

  • Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation
  • Drilling holes for post-installed rebar connections in concrete (recommended diameter range 3/4” to 1-5/8”)
  • Drilling holes for pipe penetrations or electrical outlets through concrete and masonry
  • Chiseling openings and channels in concrete or masonry
  • Digging holes in earth – SDS Max clay spade available separately

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
