TE 8-22 Cordless rotary hammer

Cordless rotary hammer TE 8-22 #2431252

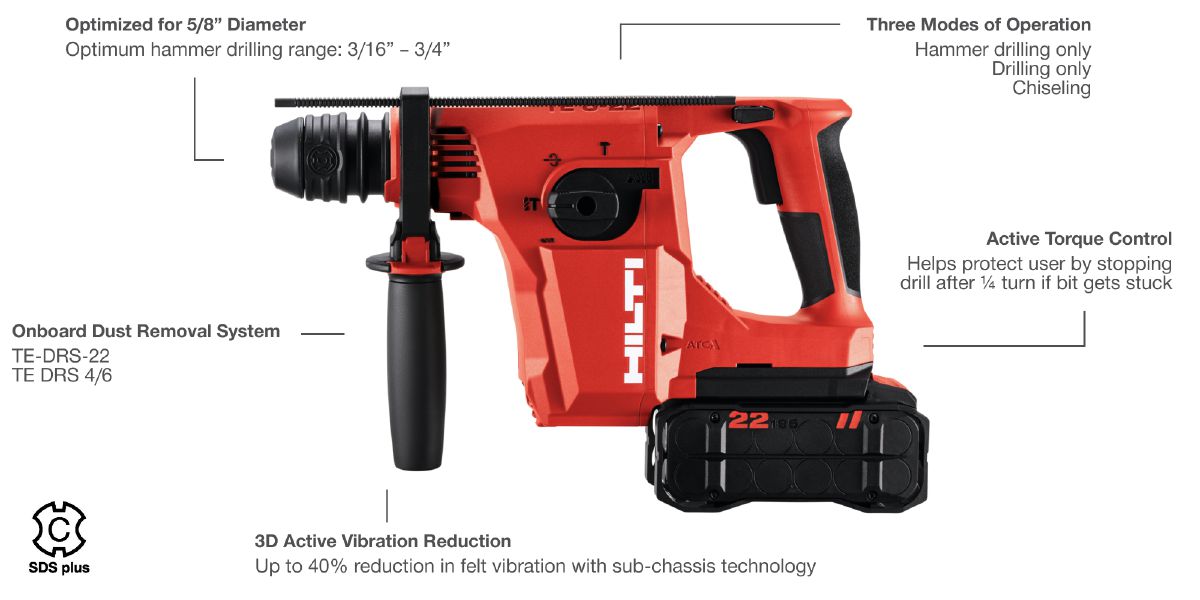

Cropped application picture of the cordless rotary hammer TE 8-22

Powerful SDS Plus cordless rotary hammer with faster drilling speed and lower vibration, ideal for reinforced concrete (Nuron battery)

Weight according EPTA-Procedure 01/2003 without battery: 6.4 lb
Optimum Hammer drilling range: 1/4 - 23/32 in
Single impact energy: 2.4 ft-lbf

Customers also searched for Cordless Rotary Hammer TE 8-22, TE 8-22 or cordless hammer.

Customize your kit

Tool Body

Tool body with cardboard box Includes: 1x Hilti Grease 50ml

How many kits do you want to order?

You cannot see your company prices

Please log in or register to see your company prices.

Discounted net

$699.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

6.4 lb

Optimum Hammer drilling range

1/4 - 23/32 in

Single impact energy

2.4 ft-lbf

Hammer drilling diameter range

5/32 - 1-3/32 in

Hammer drilling RPM

1230 rpm

Full hammering frequency

4700 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Depth gauge, Removable chuck, Reverse mode, Torque clutch, Electronic Slip Clutch, Hammer drilling

Triaxial vibration for chiseling into concrete

6.4 m/s² ¹

A-weighted emission sound power level

98 dB (A) ²

A-weighted emission sound pressure level

90 dB (A) ³

Dust removal system available

TE DRS-22, TE DRS-C, TE DRS-D

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]

Download

pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]

Download

Features & Applications

Features

Higher performance-to-weight ratio – our fastest cordless SDS plus rotary hammer in its weight-class, the TE 8-22 brings higher drilling speeds to help power through concrete and rebar with ease
Upgraded 3D Active Vibration Reduction (AVR) – the motor is isolated from the tool body, delivering our lowest vibration in its class for smoother drilling and all-day comfort
New dust removal system – combine with the TE DRS-22 for virtually dust-free drilling and a new vacuum port to help empty dust without silica exposure
Electronic Slip Clutch for rebar drilling – the TE 8-22 comes with an Electronic Slip Clutch (ESC), helping increase comfort and reduce drill bit jams in reinforced concrete
Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit sticks

Applications

Drilling and hammer drilling in rebar reinforced concrete, concrete, and masonry
Virtually dust-free drilling (TE DRS-22 on-board dust removal system or TE DRS-C dust extractor connector required)
Light-duty chiseling – such as tile scraping, channel cleaning or surface correction
Occasional drilling in wood and steel (with optional quick-release chuck)
